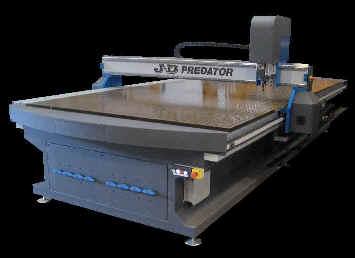

JD-PREDATOR / JD-PREDATOR S |
|
Engraving Area 2090mm x 3200mm |
|
Z-Axis Lenght 150mm |
|
Alluminium T Table (Optional Fenolic Plane with Vaacum pomp) |
|
Location Accuracy ~0,007mm |
|
Repetition Accuracy ~0,05mm |
|
Max. speed 250mm/sec /750mm/sec (S version) |
|
Rotare speed of main spindle 18000rpm /24000rpm (S version) |
|
Main Spindle Power 4,5Hp / 7,5Hp (S version) |
|
Assi X,Y Rack and Pinion |
|
Asse Z High precision Quadrate Linear Orbitis |
|
Motori X,Y,Z micro stepper motor / brushless motor (versione S) |
|
HPGL 3D - ISO |
|
Eletronics Interface DSP Control, Display Lcd, Buffer 128Mb |
|
Power 380V 50Hz ~10 (internal on-off power module) |
|
Machine dimension 2500mm x 4013mm X 1500mm |
|
Machine Weight >1500Kg |
|

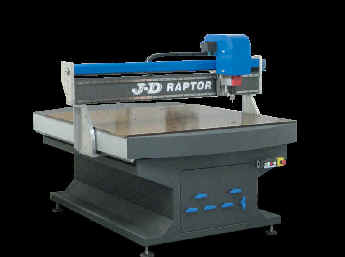

JD-RAPTOR 1500 / JD-RAPTOR 2000 |
|
Machine Dimension 2100mm x 1920mm x 1500mm / 2600mm x 1920mm x 1500mm (versione 2000) |
|
Engraving Area 1520mm x 1540mm / 2020mm x 1540mm (versione 2000) |
|
Z-Axis Lenght 125mm |
|
Alluminium T Table (Optional Fenolic Plane with Vaacum pomp) |
|
Location Accuracy ~0,005mm |
|
Repetition Accuracy ~0,05mm |
|
Max. speed 20000mm/min |
|
Rotare speed of main spindle 6000rpm /18000rpm (optional 24000rpm) |
|
Main Spindle Power 2Hp |
|
Asse X,Y,Z High precision Quadrate Linear Orbitis |
|
Motori X,Y,Z micro stepper motor |
|
HPGL 3D - ISO |
|
Eletronics Interface DSP Control, Display Lcd, Buffer 128Mb |
|
Power 220V 50Hz ~10 (380V with vaacum pomp) |
|
Machine dimension 2500mm x 4013mm X 1500mm |
|
Machine Weight >630Kg / >830Kg (2000) |
|
JD Racer |
|
Engraving Area 1220 x 1220mm |
|
Z-Axis Lenght 125mm |
|
Alluminium T Table (Optional Fenolic Plane with Vaacum pomp) |
|
Location Accuracy ~0,005mm |
|
Repetition Accuracy ~0,05mm |
|
Max. speed 15000mm/min |
|
Rotare speed of main spindle 6000rpm/18000rpm (optional 24000) |
|
Main Spindle Power 2Hp |
|
Assi X,Y Rack and Pinion |
|
Asse Z High precision Quadrate Linear Orbitis |
|
Motori X,Y,Z micro stepper motor |
|
HPGL 3D - ISO |
|
Eletronics Interface DSP Control, Display Lcd, Buffer 128Mb |
|
Power 220V 50Hz ~10 (380V with vaacum pomp) |
|
Machine dimension 1800 x 1500 x 1500mm |
|
Machine Weight >300Kg |
New version JD Racer 2500, diversify some voice from the standard Racer:
|
JD Racer 2500 |
|
Machine dimension: 3000 x 1850 x 1500 mm |
|
Engraving Area : 2620 x 1520 |
|
Z Axis Lenght : 150 |
|
Rotare speed of main spindle : 24000 giri |
|
Main spindle power : 4,2 hp |
|
Power : 380V |
|
Machine Weight : 900 kg |
New version JD Racer 3000, diversify some voice from the standard Racer:
|
JD Racer 3000 |
|
Machine dimension: 3700 x 2410 x 1650 mm |
|
Engraving area: 3060 x 2090 |
|
Z axis lenght: 170 |
|
Rotare speed of main spindle: 24000 giri |
|
Main spindle power: 4,2 hp |
|
Power: 380V |
|
Peso: 1100 kg |
Specification :
|
JD 6090 |
|
Engraving Area 760mm x 1300mm |
|
Z-Axis Lenght 150mm |
|
Alluminium T Table (Optional Fenolic Plane with Vaacum pomp) |
|
Location Accuracy ~0,03mm |
|
Repetition Accuracy ~0,01mm |
|
Max. speed 4500 mm/min |
|
Rotare speed of main spindle 6000rpm /24000rpm |
|
Main Spindle Power 1,5Kw |
|
Asse X,Y,Z High precision Quadrate Linear Orbitis |
|
Motori X,Y,Z micro stepper motor |
|
HPGL 3D - ISO |
|
Eletronics Interface |
|
Power 220V 50Hz ~10 (internal on-off power module) |
|
Machine Weight >150Kg |
OPTIONAL:
Vaacum Table
Automatic change tool with 6 / 10 / 12 position
Tangential head for oscillant blade cutting
Floating head
vinil cutting blade
Optical system "OrtoCN"
Laser mapping system
Laser 3D scanner
Optical acknowledging and vectorization of contouring
C rotary axis
